High Performance

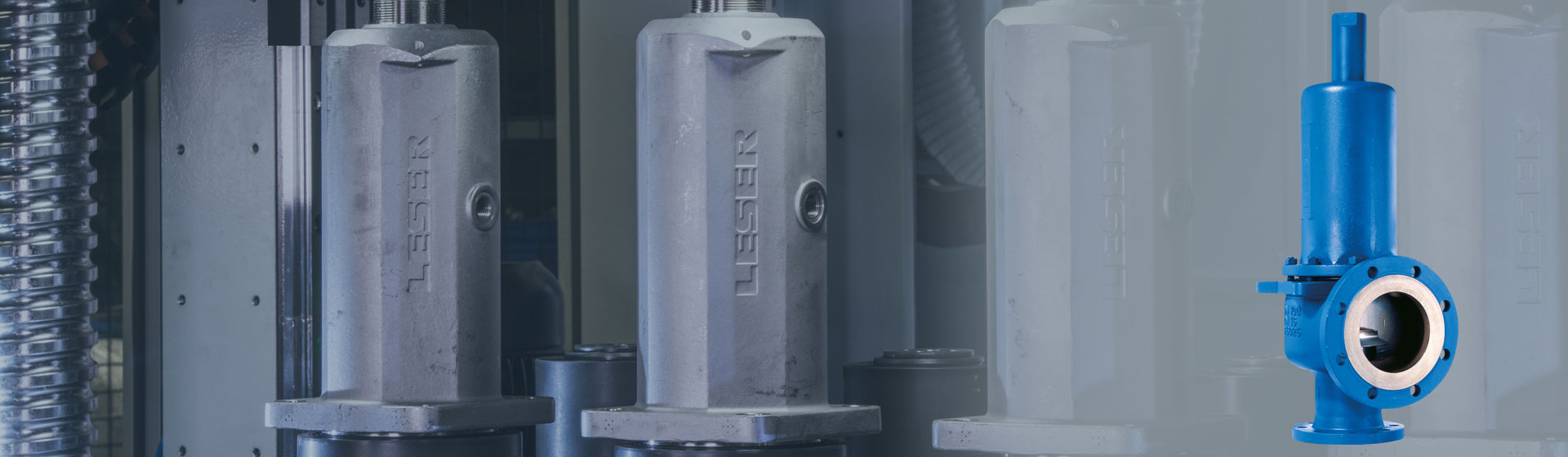

High Performance Safety Valve from LESER

Safety valves for all industrial applications

  • High capacities in comparison to nominal size
  • Wide range of nominal sizes
  • Wide range of options available
  • Excellent price-performance ratio
  • LESER Nanotightness: Exceeds the tightness requirements of API 527 by 50%

批准书

LESER High Performance safety valves are designed, marked, produced and approved according to the requirements of the following regulations:

  • LESER CE Approvel
  • LESER ASME Approvel
  • LESER EAC Approvel
  • LESER Chinese TS Approvel

阀门类型

Type 441, 442 DIN

DIN Flange

DN 20 - DN 200 (3/4" - 8")

Type 441, 442 ANSI

ANSI Flange

DN 25 - DN 100 (1" - 4")

Type 441, 442 XXL

High nominal diameter

DN 250 - DN 400 (10" -16")

类型 444 DIN

深拉阀体

DN 25 - DN 80 (1"-3")

Type 444 ANSI

Deep-drawn body

DN 25 - DN 80 (1" - 3")

Type 441, 442 Full nozzle DIN

Nozzle

DN 25 - DN 50 (1" - 2")

Type 441, 442 Full nozzle ANSI

Nozzle

DN 25 - DN 100 (1" - 4")

Type 455, 456

High pressure with seat

DN 25 - DN 100 (1" - 4")

Type 457, 458

High pressure with seat

DN 25 - DN 150 (1" - 6")

Technical data High Perfomance

入口处的公称直径
DN 20 - DN 400 | 3/4" - 16"
實際流道直徑d₀
18 mm - 295 mm | 0.71 in - 11.61 in
实际流道面积A₀
254 mm² - 68349 mm² | 0.394 in² - 105.942 in²
壓力
0.1 bar - 300 bar | 1.5 psig - 4,350 psig
温度(符合DIN EN标准)
-270 °C to 550 °C | -454 °F to 1,022 °F
阀体 材质
0.6025, 0.7043, 1.0619, 1.4408, 1.0460 / 1.0425, 1.4571, 1.4404, 1.4581, 1.7357 | Cast iron, Ductile Gr. 60-40-18, SA 216 WCB, SA 351 CF8M, carbon steel, 316Ti, SA 479 316L, SA 351 CF10M , SA 217 WC6
阀门连接
Flange in accordance with DIN EN 1092 or ASME B 16.5
波纹管 材质 (可选项al)
Stainless steel, elastomer
装载类型
Spring-loaded
