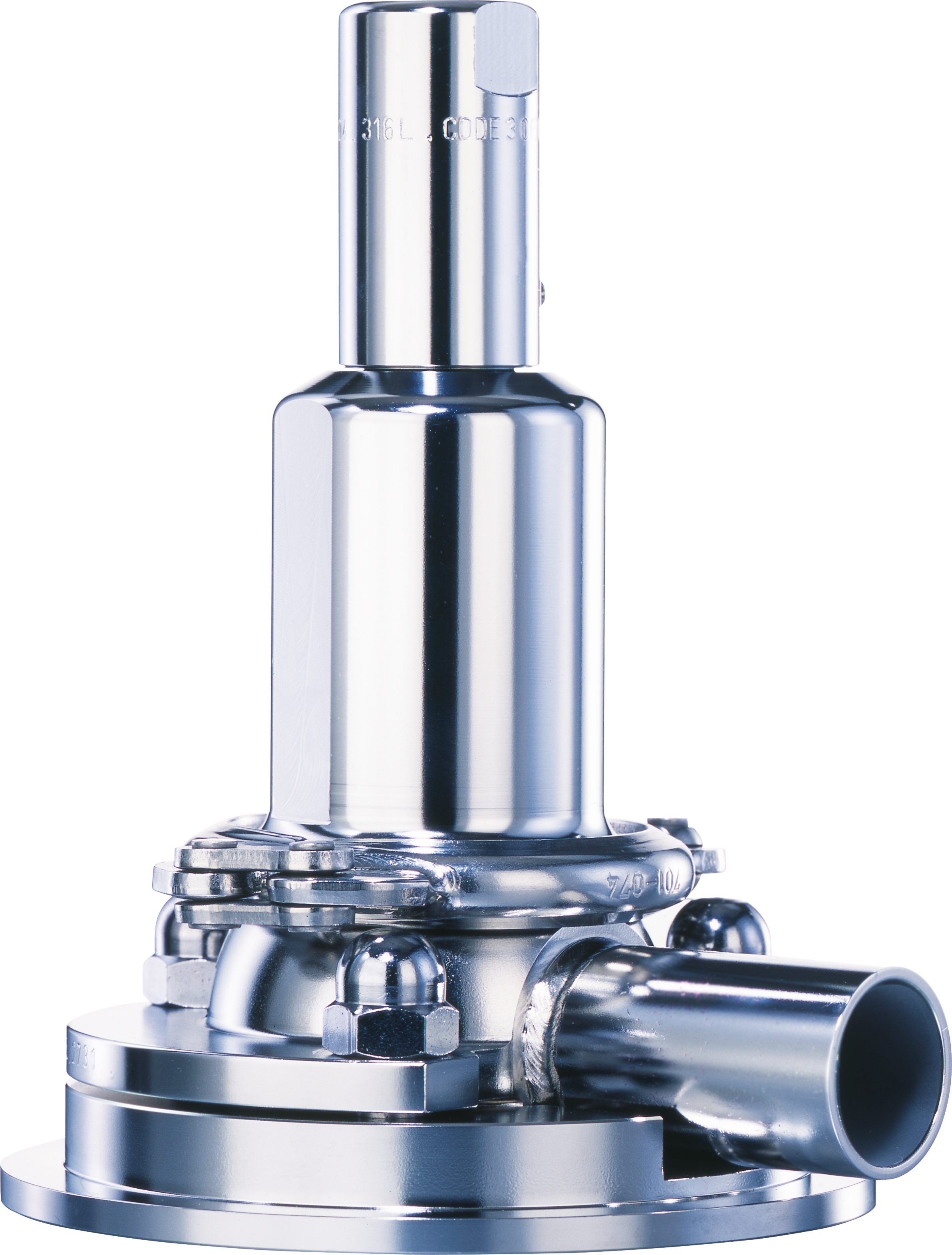

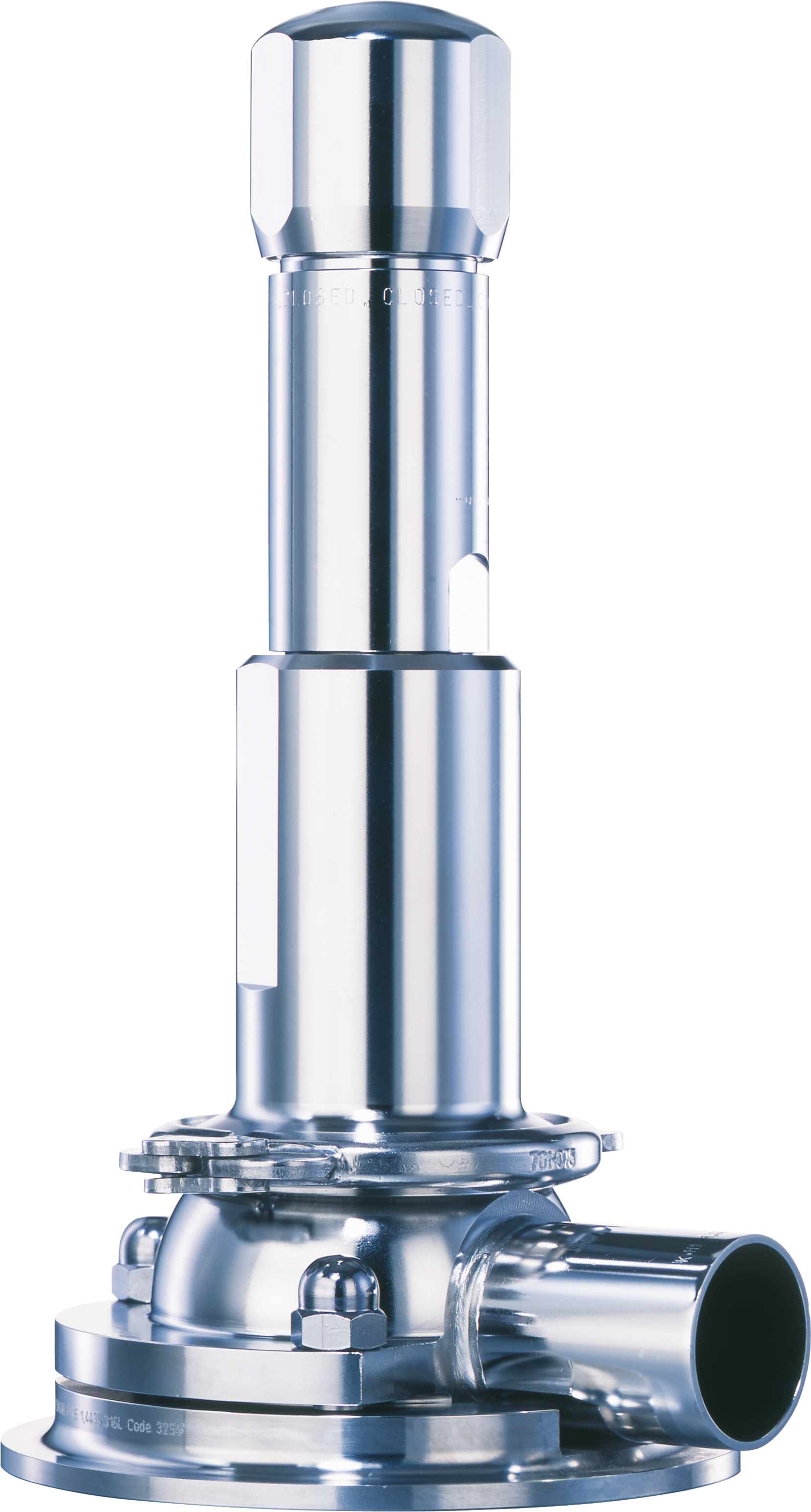

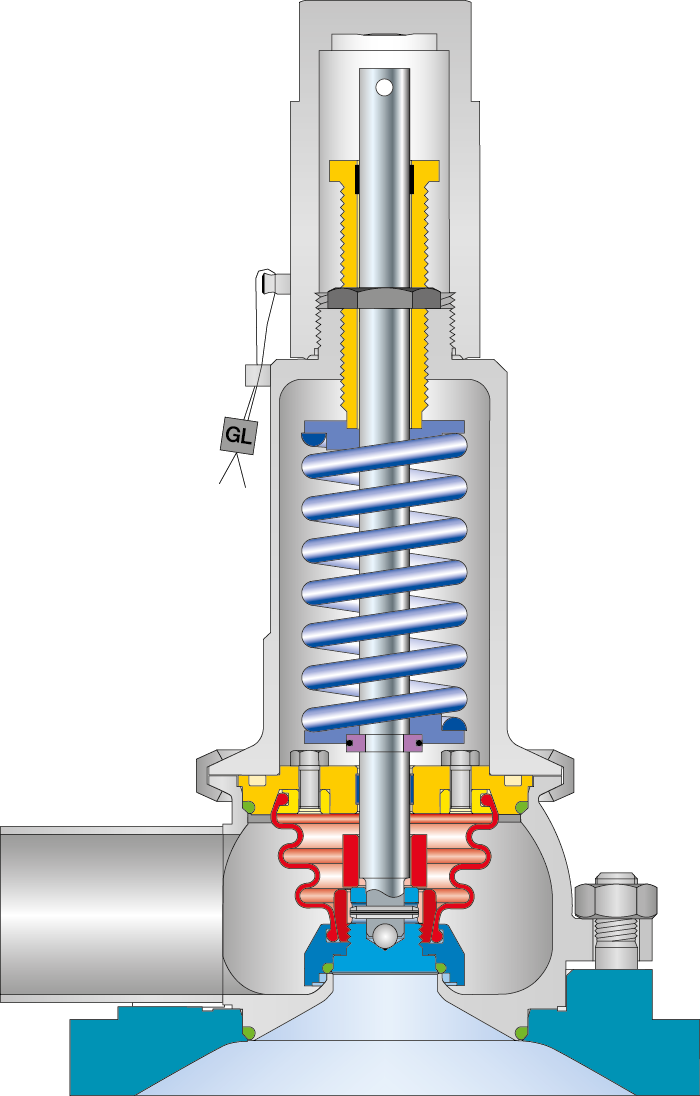

Technical specifications Type 484

入口处的公称直径

DN 25 - DN 40 | 1'' - 2''

流道

D - F

實際流道直徑d₀

13 - 25 mm | 0.512 - 0.984 in

实际流道面积A₀

133 - 491 mm² | 0.206 - 0.761 in²

壓力

0.1 - 16 bar | 1.5 - 232 psig

温度(符合DIN EN标准)

-45 to 250 °C | -49 to 482 °F

阀体 材质

1.4435 (BN2) | SA 479 316L

阀门连接

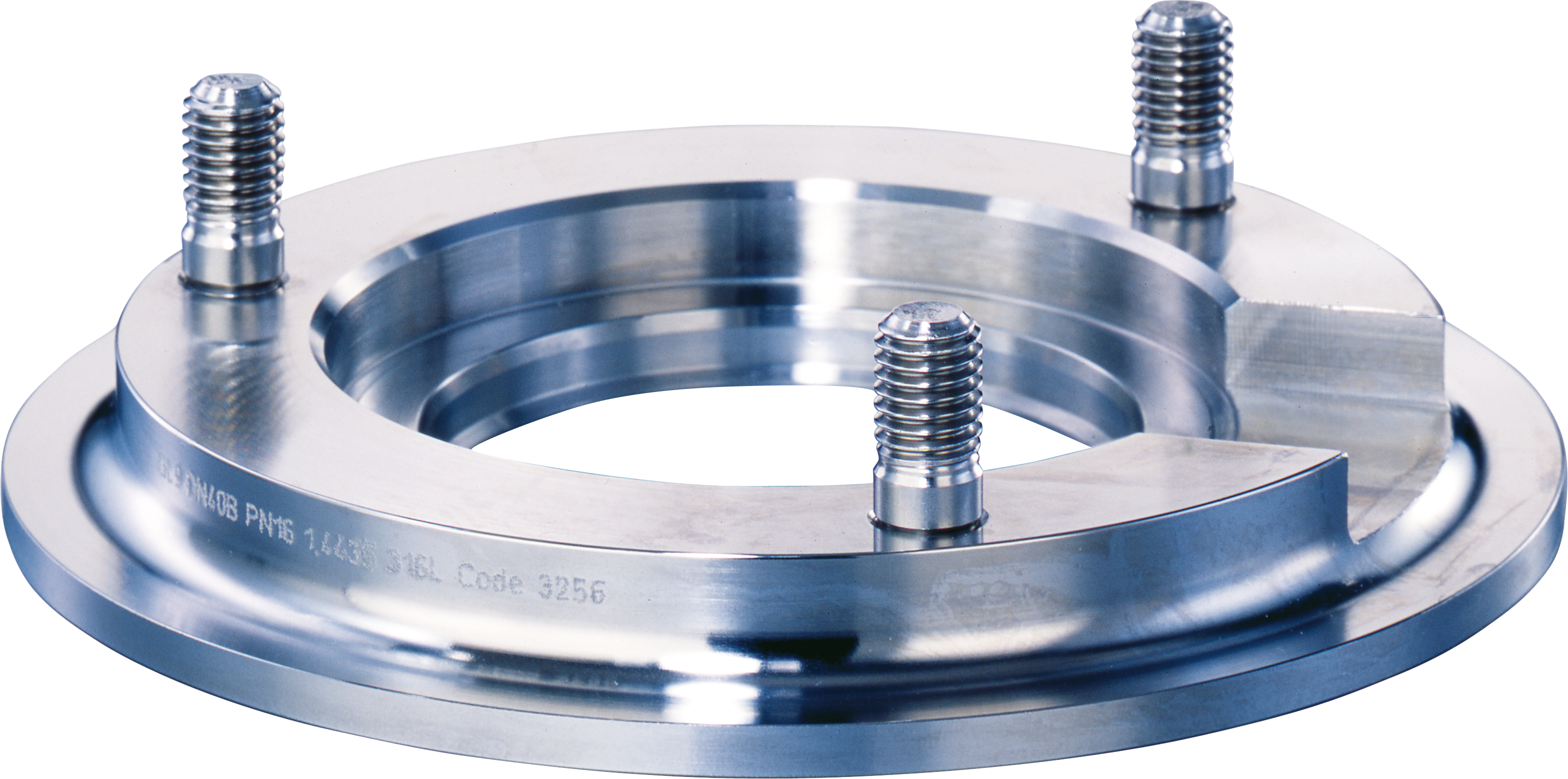

Inlet: vessel connection type 5034 for welding into the vessel Outlet: normally welded end connection acc. to ASME DIN 11850, Clamps acc. to ASME BPE / DIN 32676, ISO 2852 or DIN EN ISO 1127, Aseptic clamp acc. to DIN 11864 T1 Series A or B (with nut), DIN 11851 or Neumo Sterile aseptic thread (with nut)

波纹管 材质 (可选项al)

EPDM

装载类型

Spring loaded

批准书

PED/ DIN EN ISO 4126-1, PED/ AD 2000-Merkblatt A2, ASME Sec. VIII Div. 1, CRN, AQSIQ, EAC

特价

HyTight Assembly Designed and manufactured acc. to: DIN 11866, ASME BPE, EN 1672-2, DIN ISO 14159, USP class VI and FDA 21 CFR
